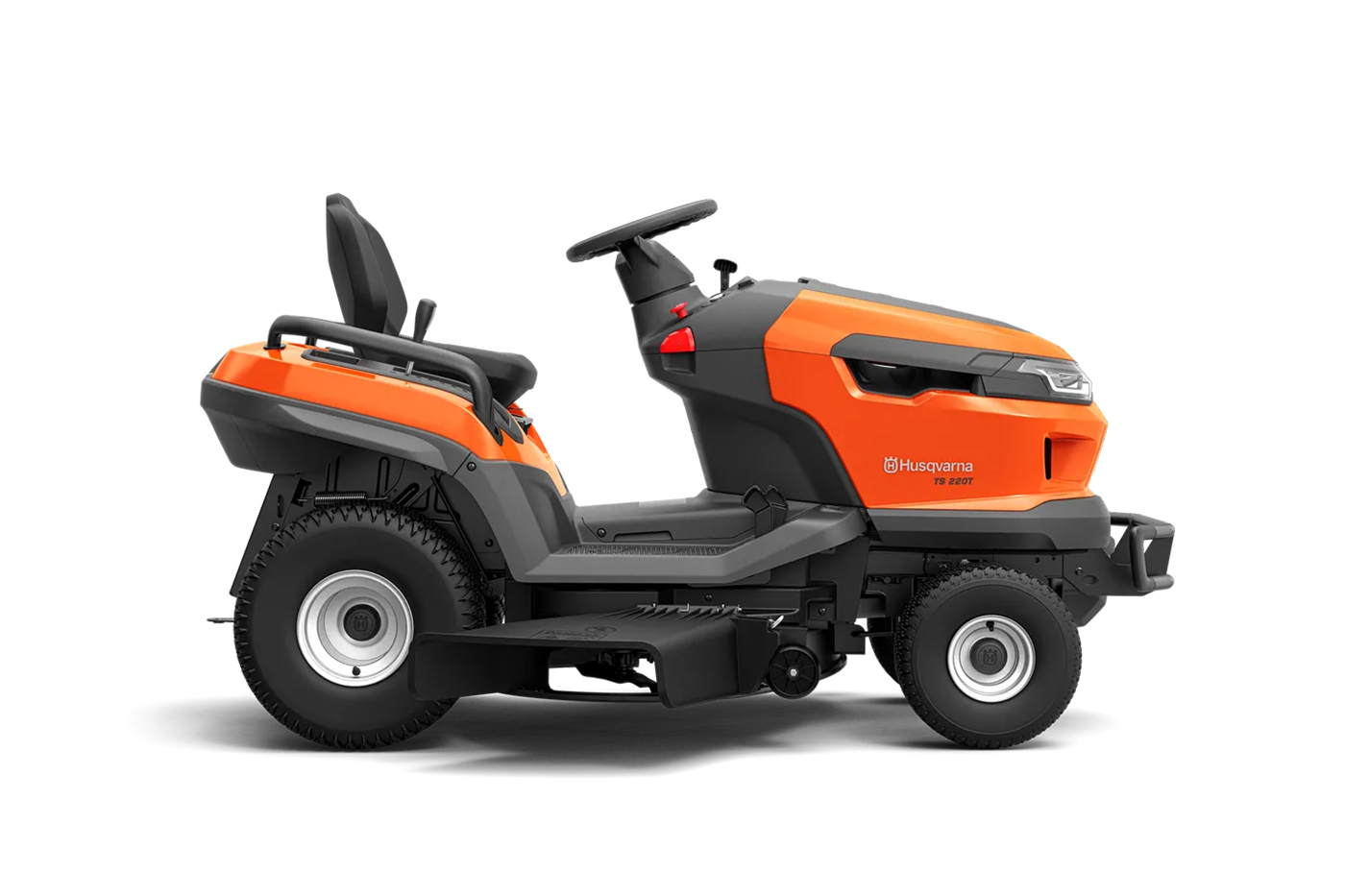

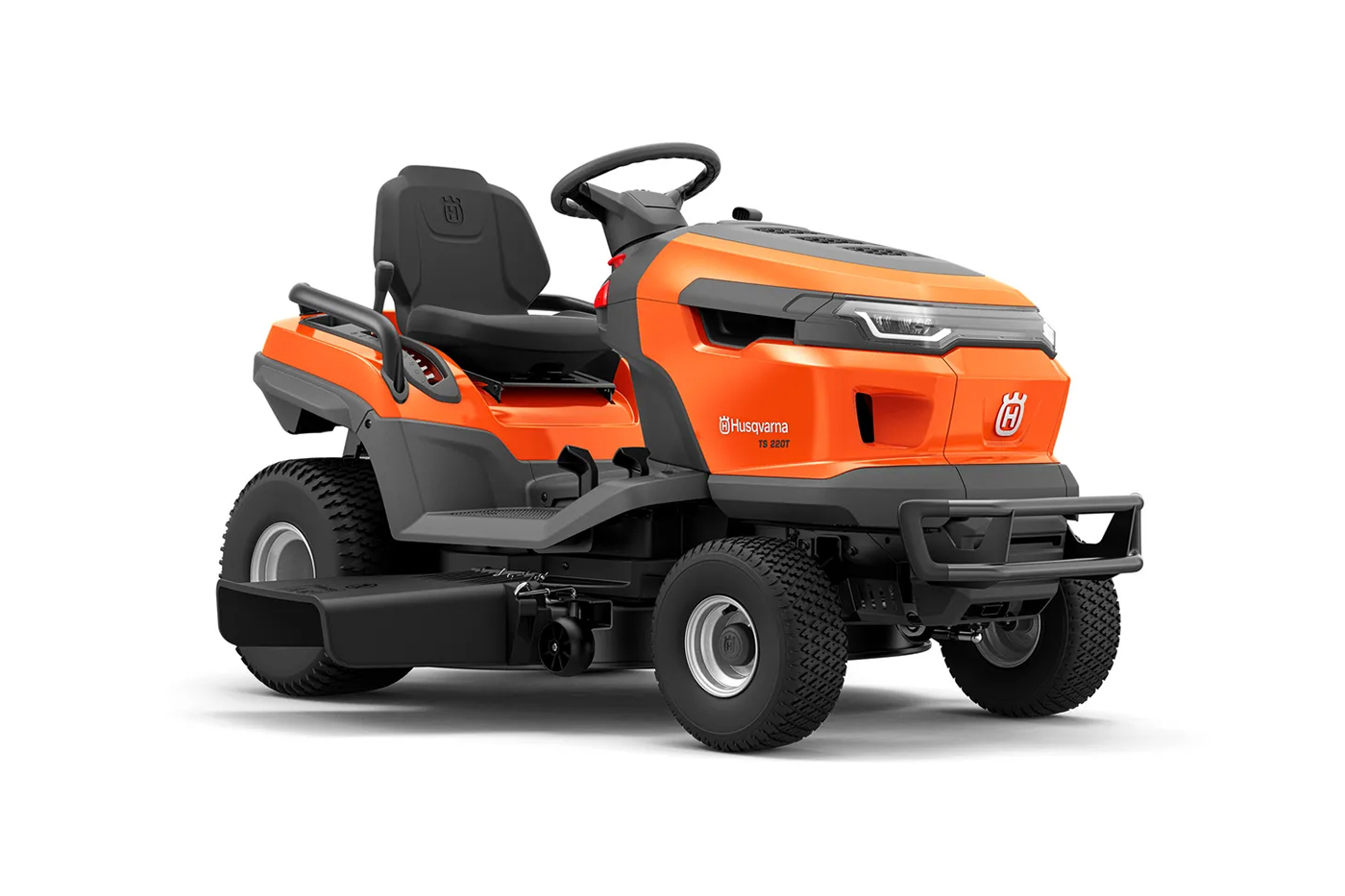

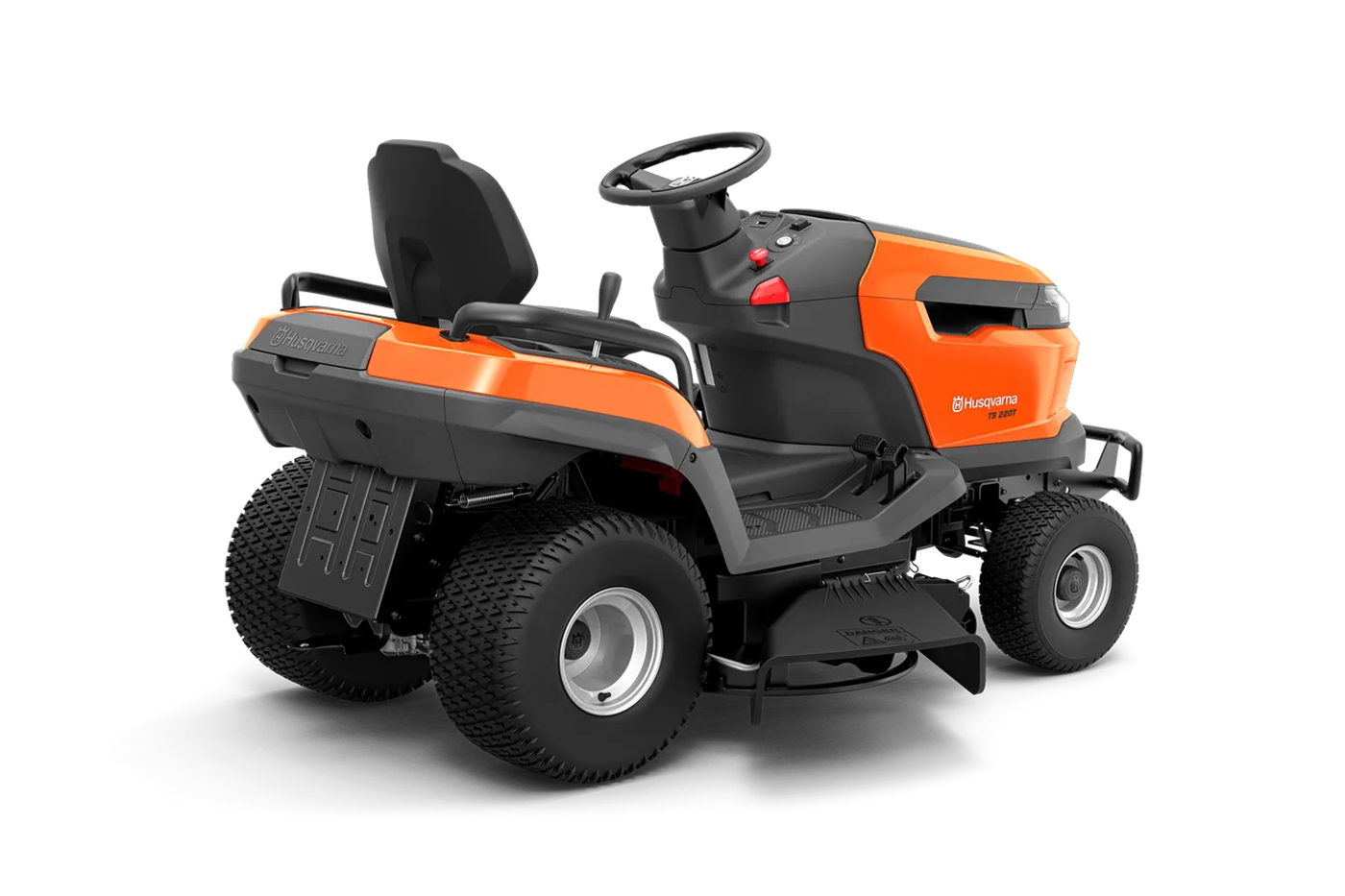

Husqvarna TS 220TD
R84 460,00
764 cm³
Cylinder displacement
Net power at preset rpm Energy
Petrol
Power/fuel type
High performance mowing and comfort-enhancing features
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance. ROS (reverse operation system) is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally. There is also a brush guard to protect the front.
Comfortable operation with cruise control so that the foot can rest when mowing large open areas.
Comfortable operation with cruise control so that the foot can rest when mowing large open areas.
Soft grip steering wheel
Soft grip steering wheel for a pleasant user experience.
Ergonomic controls
Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height.
Convenient storage compartments
One open storage compartment on the left and one at the back with a lid for easy access to equipment during mowing.
LED Headlights
Equipped with LED headlights for higher visibility from the driver’s position when operating in dark conditions.
Side handles
The side handles can be used when getting on and off, or to push the product into the garage or other spaces.
Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation
Spring-assisted cutting height adjustment
Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier.
Electric engagement of cutting blades
Easy engagement of cutting blades; simply pull the switch on the control panel.
Easy seat adjustment
The driver's seat can be easily adjusted by sliding it to the desired position without you having to get off the product.
Durable front axles
Robust design with cast iron front axles for reliable and durable performance.
Bumper
Protects the front of the tractor effectively.
Automatic locking differential
The standard automatic locking differential senses wheel slip and locks the rear wheels for increased traction.
ROS in start key
ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.
Easy refueling
Thanks to the external fuel cap, you don't have to open the engine hood when refueling.
Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.
Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
| Cutting deck |
Pacific
Art no: 970 72 84‑01
|
|---|---|
Cutting width |
108 cm |
Cutting height max |
105 mm |
Cutting height min |
25 mm |
Nose roller |
No |
Anti-scalp wheels |
2 |
| Drive system | |
Drive method |
Dual pedal-operation |
Speed forward max |
10 km/h |
Speed reverse max |
6 km/h |
| Engine | |
Cylinder displacement |
764 cm³ |
Engine brand |
Husqvarna |
Motor/engine manufacturer |
Husqvarna |
Engine name |
HV 764AE |
Net power at preset rpm Energy |
17 kW |
Net power at preset rpm |
3 100 rpm |
Cylinders |
2 |
Power/fuel type |
Petrol |
Oil filter |
Yes |
| Equipment | |
Seat material |
PU |
Front-End Protection |
Brush Guard Style Bumper |
Hour meter type |
Digital |
Seat back height |
Medium |
Steering wheel type |
Ergonomic - soft grip |
Collector |
Available as accessory |
| Transmission | |
Transmission type |
Hydrostatic |
Transmission manufacturer |
Tuff Torq |
| Emission | |
Exhaust emissions (CO₂ EU V) |
806 g/kWh |
