HUSQVARNA TF 230
R12 610,00
75 cm
Working width
196 cm³
Cylinder displacement
3,45 kW
Net power at preset rpm Energy
Description
TF 230

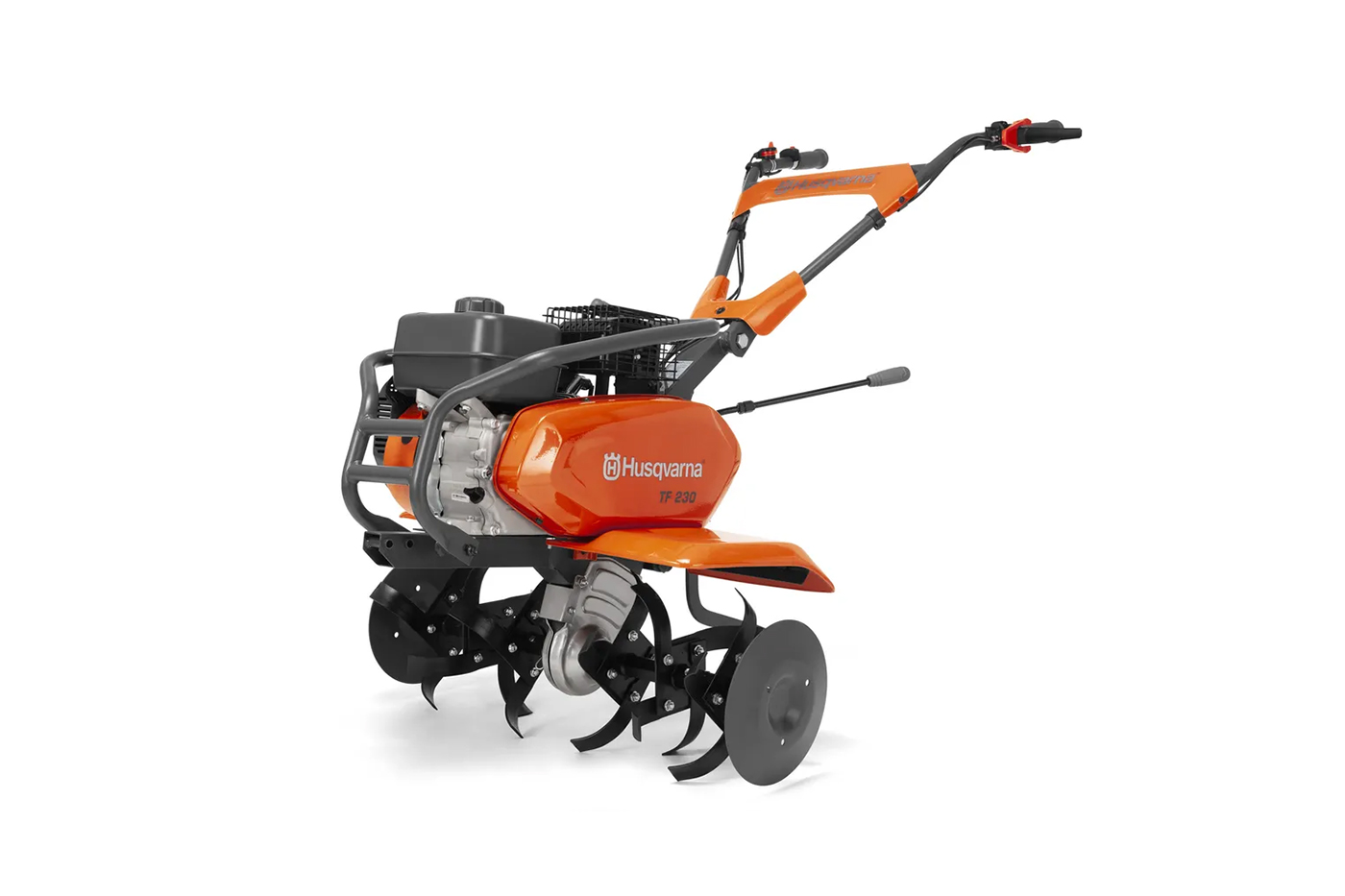

A basic and handy tiller that is easy to manoeuvre. Powered by a reliable and powerful Husqvarna engine and equipped with a bumper to protect the engine in use or during transportation. Foldable handlebar and transport wheel is standard. The fully sealed transmission makes it a perfect and long-lasting partner for work in wet cultures. This is a tiller for every customer who values durability and long-lasting efficiency.
Protective bumper
The bumper will protect the engine in use or during transportation. It can also serve as lifting handle.
Husqvarna gasoline engine
Powerful and reliable husqvarna gasoline engine.
Plant guard
Protect plants outside the working area.
Adjustable handlebar
Adjustable handlebar for best working position.
Disclaimer:
1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Specifications
| Engine |
TF 230 PETROL TILLER
Art no: 967 06 78‑01
|
|---|---|
Engine name |
Husqvarna Engine |
Net power at preset rpm Energy |
3,45 kW |
Net power at preset rpm |
3 100 rpm |
Air filter type |
Oil bath |
Fuel tank volume |
3,6 l |
Power/fuel type |
Petrol |
Cylinder displacement |
196 cm³ |
| Emission | |
Exhaust emissions (CO₂ EU V) |
610 g/kWh |
| Equipment | |
Rubber wheels |
Included |
Transport wheel/s |
Not available |
Foldable handlebar |
Yes |
Horizontally adjustable handlebar |
No |
Vertically adjustable handlebar |
Yes |
| Capacity | |
Working width |
75 cm |
Working depth |
30 cm |
Tine diameter |
320 mm |
Number of tines |
6 |
Rotational speed (min/max) min |
53 rpm |
Rotational speed (min/max) max |
97 rpm |
Cultivator type |
Front-tine |
| Transmission | |
Transmission type |
Chain/Manual |
Transmission steps reverse |
1 |
Transmission steps forward |
2 |
| Dimensions | |
Weight (complete product w/o side packed articles) |
67 kg |
