HUSQVARNA R 316TX AWD
R125 850,00
Petrol
Power/fuel type
112 cm
Cutting width, max
94 cm
Cutting width, min
Powerful all-wheel drive Rider for challenging lawns
Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 94, 103 or 112 cm Combi cutting decks for efficient BioClip® and rear ejection cutting.
Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
HMI Display
The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work.
Attachment frame

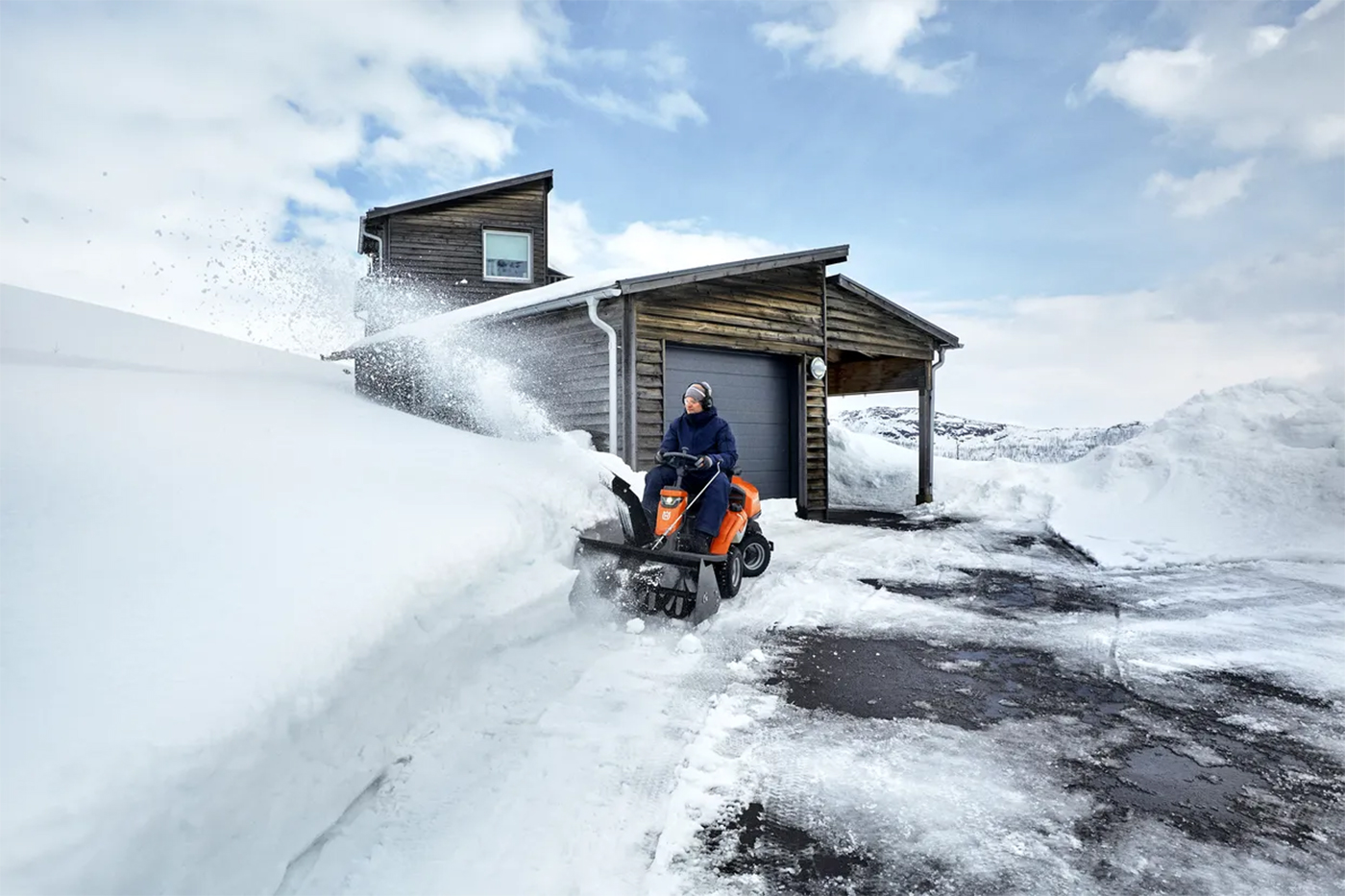

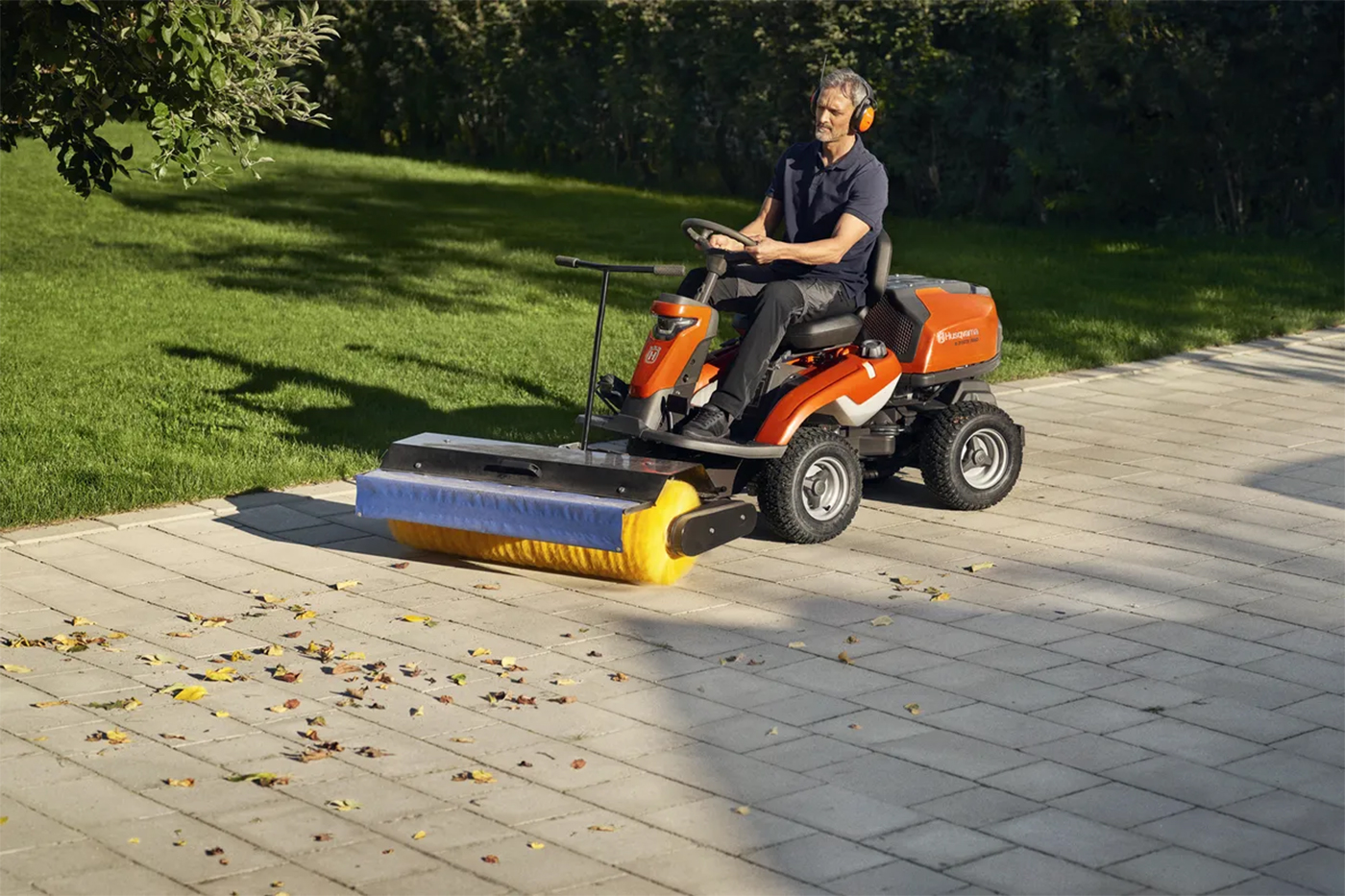

The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Rear ejection
The rear ejection cutting mode provides high-effective cutting performance on areas with higher grass.
Pedal-Operated Transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Dual LED lights for improved visibility, both near and remote.
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.

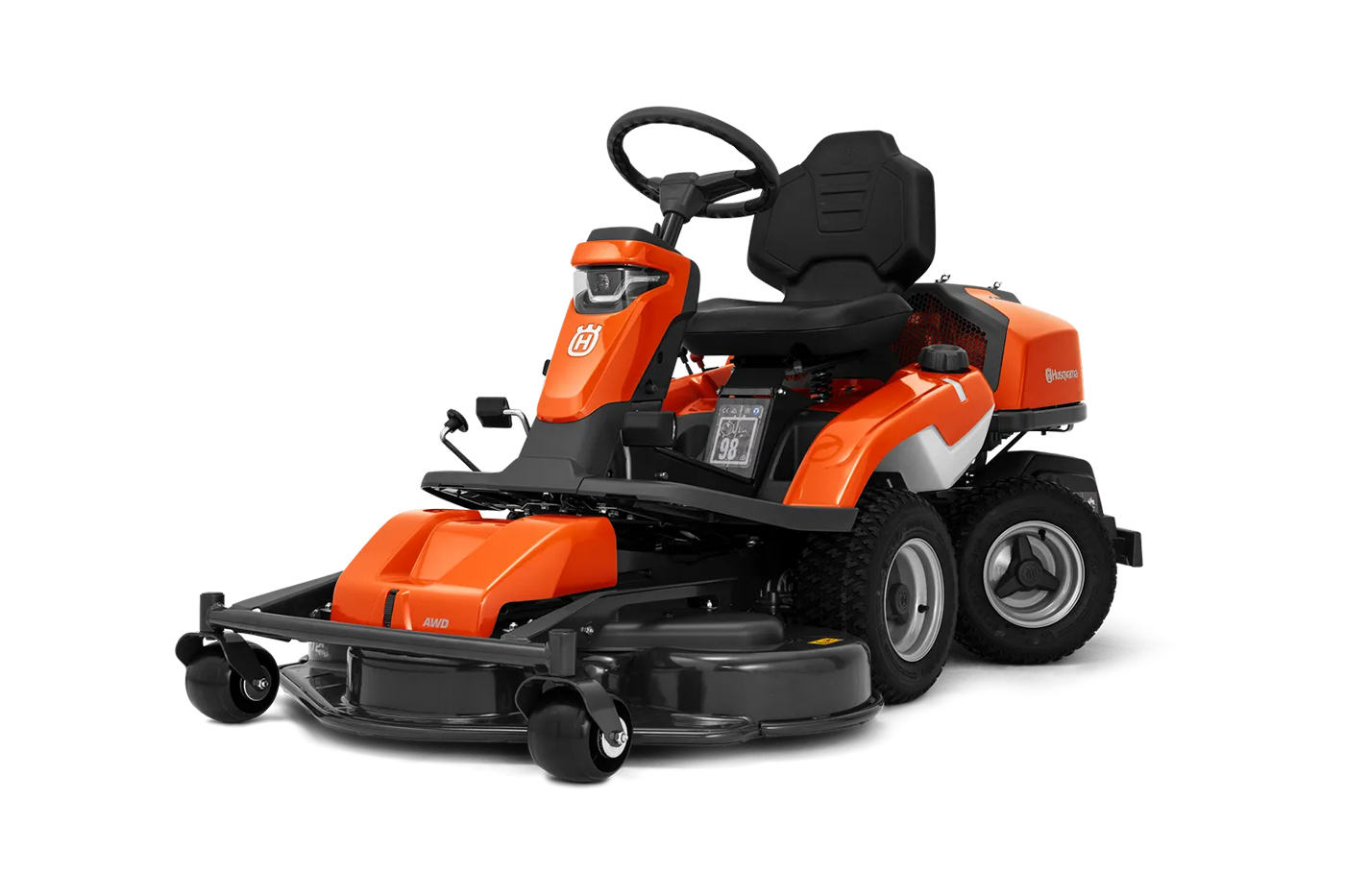

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.
BioClip®
BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser, providing excellent results on frequently cut areas.

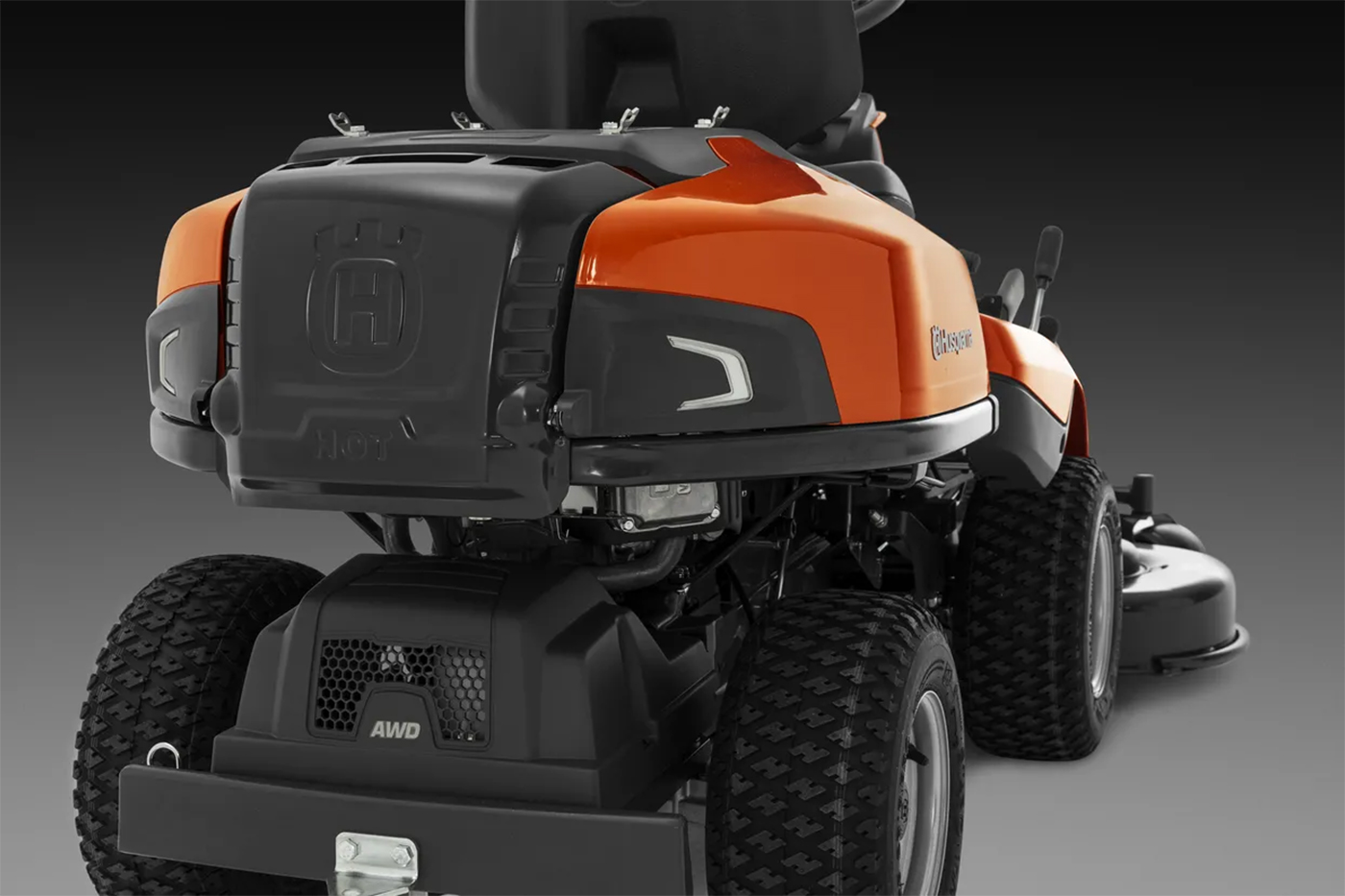

All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Easy-access service points
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.
Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Gross weight towed: For 2-wheel drive machines, towing of trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of trailer may shorten the life time of the Rider's transmission.
| Product Variants |
3/8" C85 SN ,3/8" C85 SN ,3/8" C85 SN |
|---|
| Engine |
R316TXAWD RIDER
Art no: 970 54 28‑01
|
|---|---|
Power/fuel type |
Petrol |
Net power at preset rpm Energy |
9,6 kW |
Net power at preset rpm |
2 900 rpm |
Engine brand |
Kawasaki |
Motor/engine manufacturer |
Kawasaki |
Engine name |
FS Series V-Twin |
Cylinder displacement |
603 cm³ |
Cylinders |
2 |
Engine cooling |
Air |
Engine lubrication type |
Full pressure |
Oil filter |
Yes |
| Emission | |
Exhaust emissions (CO₂ EU V) |
851 g/kWh |
| Battery | |
Battery capacity |
24 Ah |
Battery type |
Lead-Acid |
Battery pack weight |
7 kg |
Battery manufacturer |
Global |
| Cutting deck | |
Uncut circle |
30 cm |
Cutting width, min |
94 cm |
Cutting width, max |
112 cm |
Cutting height min |
25 mm |
Cutting height max |
75 mm |
Blade engagement |
Automatic |
| Dimensions | |
Tyre dimensions, front |
170/60-8 |
Tyre dimensions, rear |
170/60-8 |
Wheelbase |
88,7 cm |
Ground clearance |
90 mm |
Base machine, length |
202,4 cm |
Base machine, width |
88,3 cm |
Base machine, height |
118,1 cm |
Gross weight towed |
125 kg |
Weight (excl. cutting equipment) |
238 kg |
| Drive system | |
PTO (Power Take Off) |
Belt Drive |
Transmission type |
Hydrostatic |
Drive method |
Dual pedal-operation |
Speed forward max |
9 km/h |
Speed reverse max |
6 km/h |
| Equipment | |
Seat suspension |
Yes |
Seat type |
Premium |
Hour meter type |
Digital with pre-programmed service intervals |
Seat material |
Vinyl |
Seat back height |
High |
Foldable seat |
Yes |
Steering wheel type |
Comfort |
Parking brake, type |
Disc |
| Vibration | |
Vibration level steering wheel |
2,5 m/s² |
Vibration level seat |
0,7 m/s² |
| Sound and noise | |
Sound pressure level at operators ear |
86 dB(A) |
Sound power level, guaranteed (LWA) |
98 dB(A) |
Sound power level, measured |
97 dB(A) |
