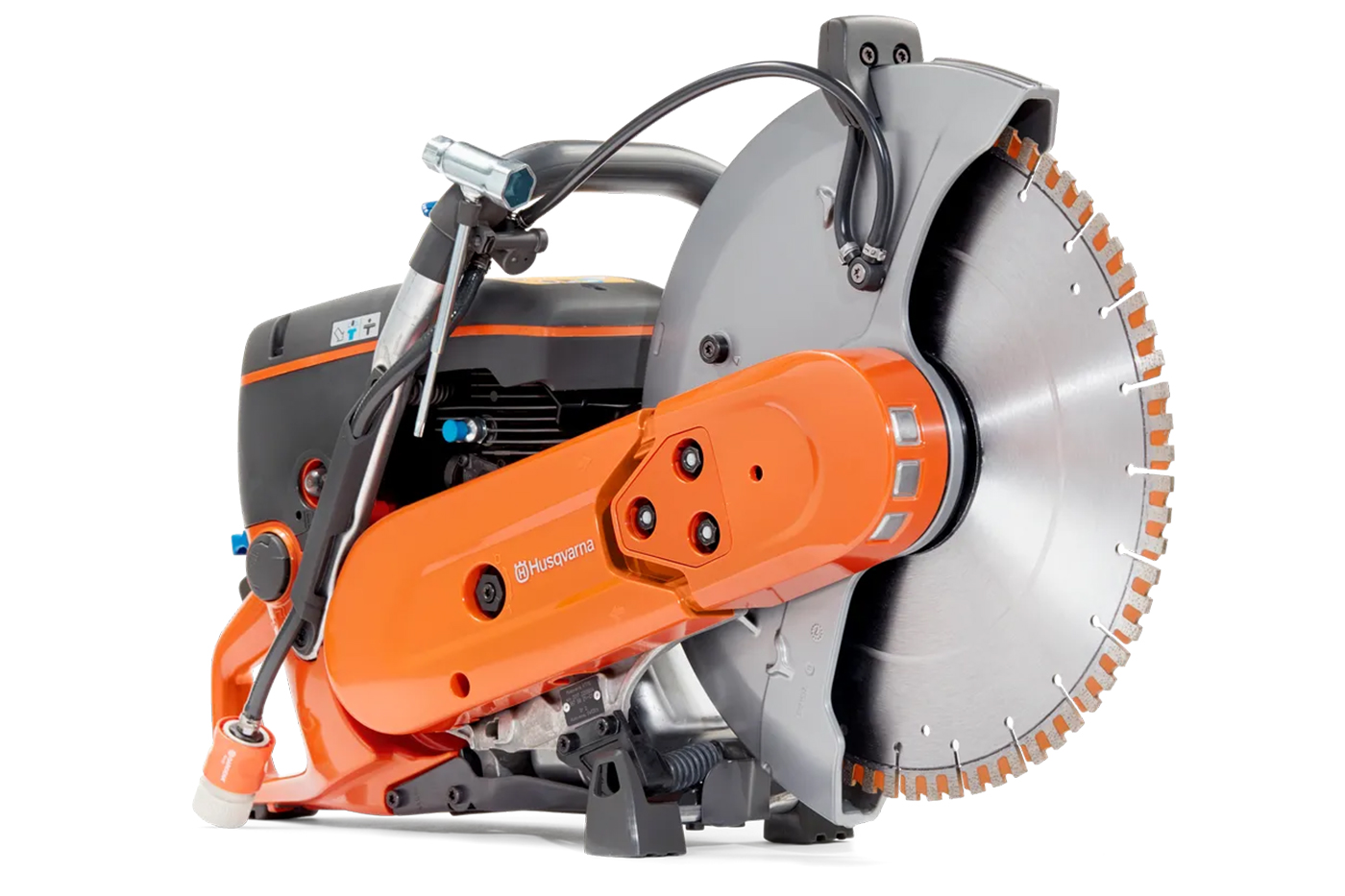

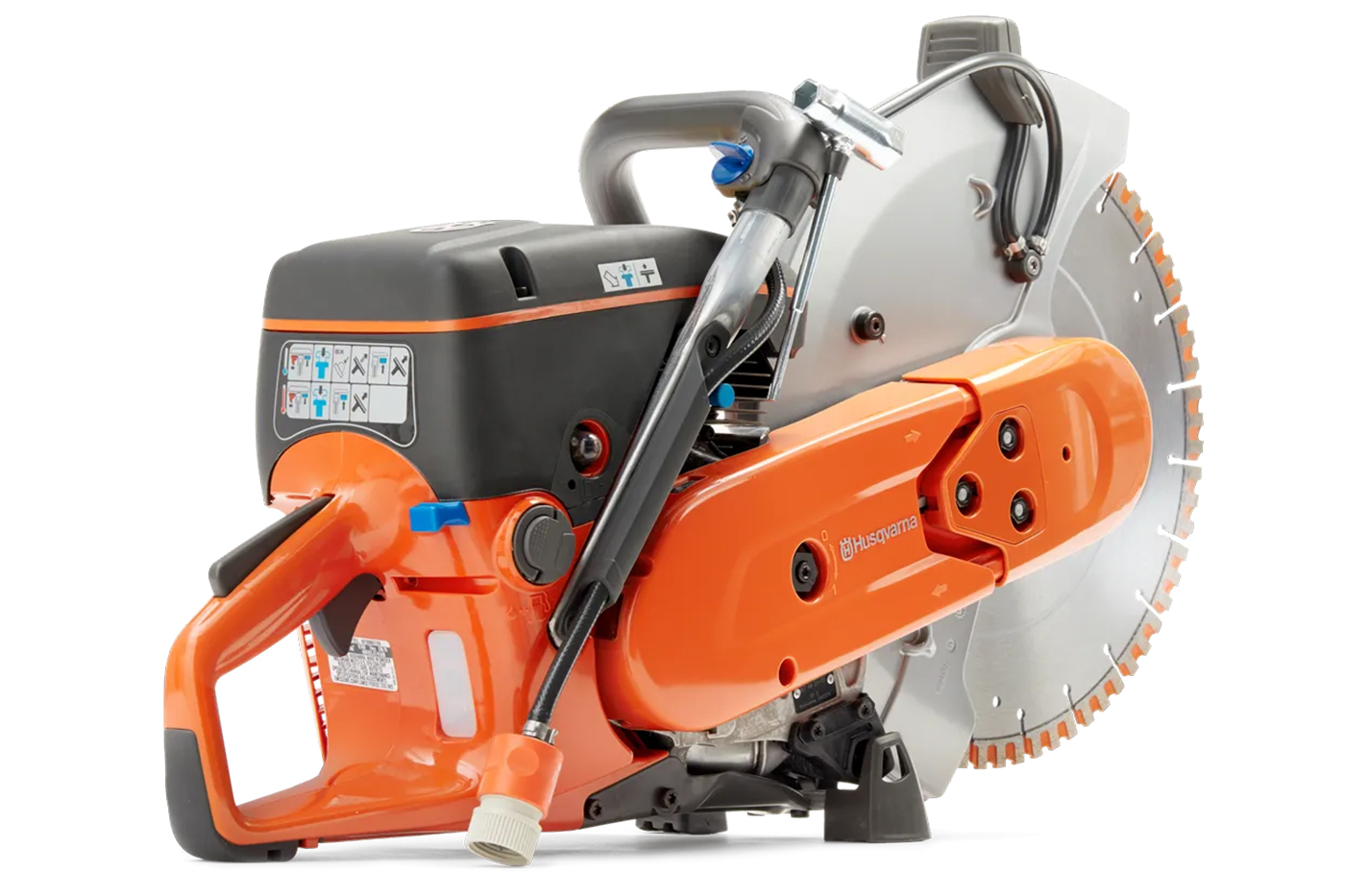

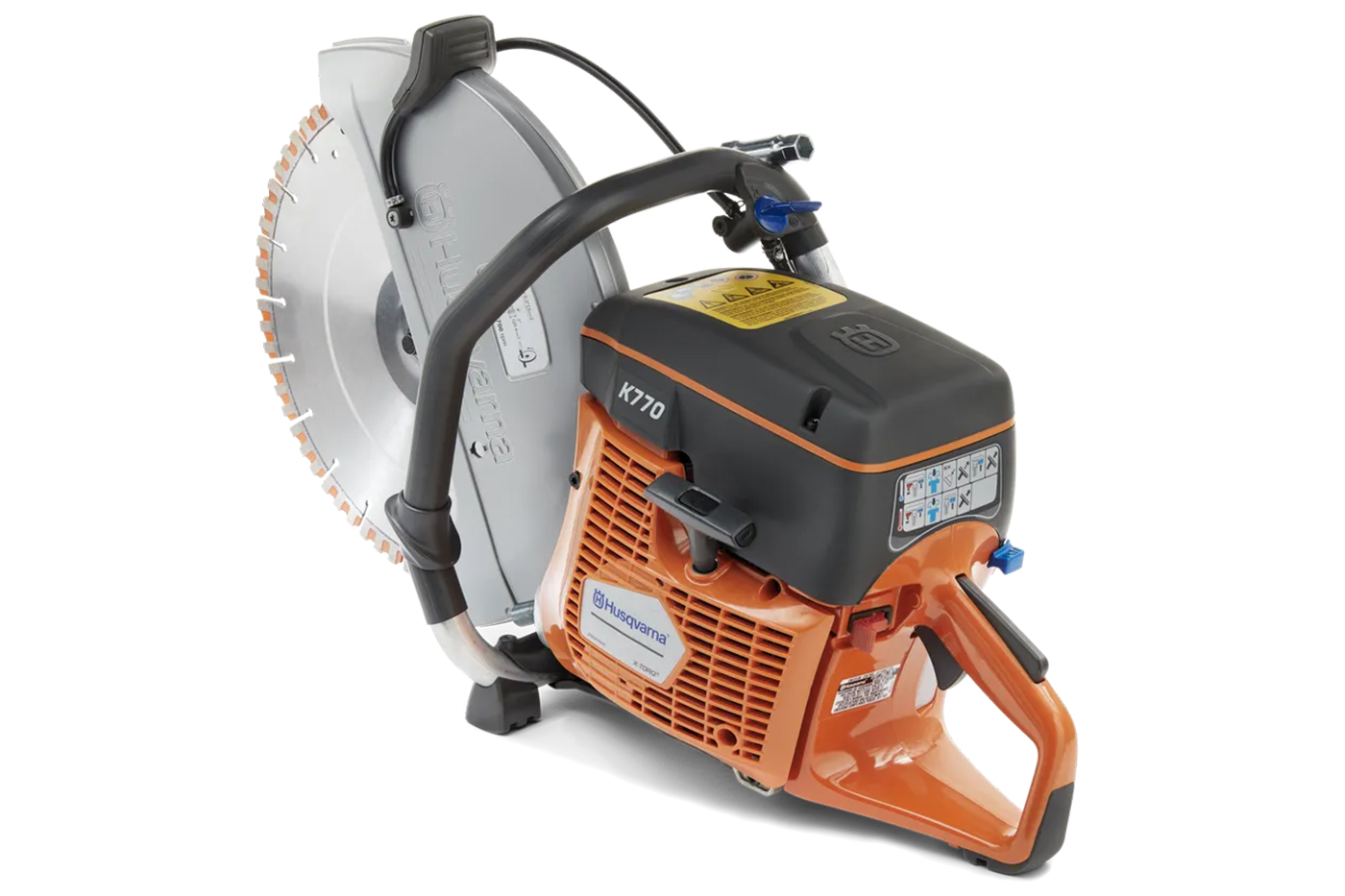

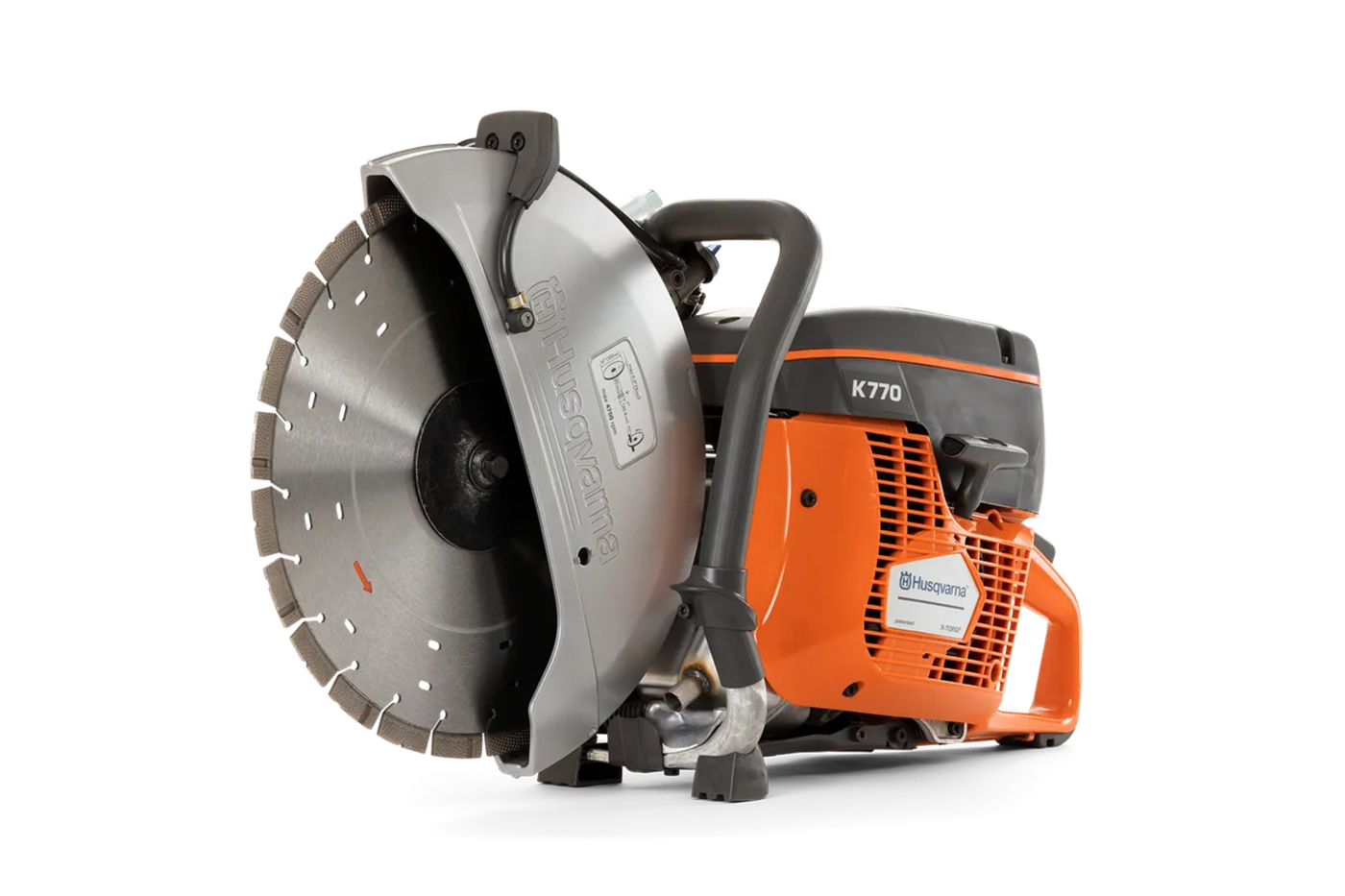

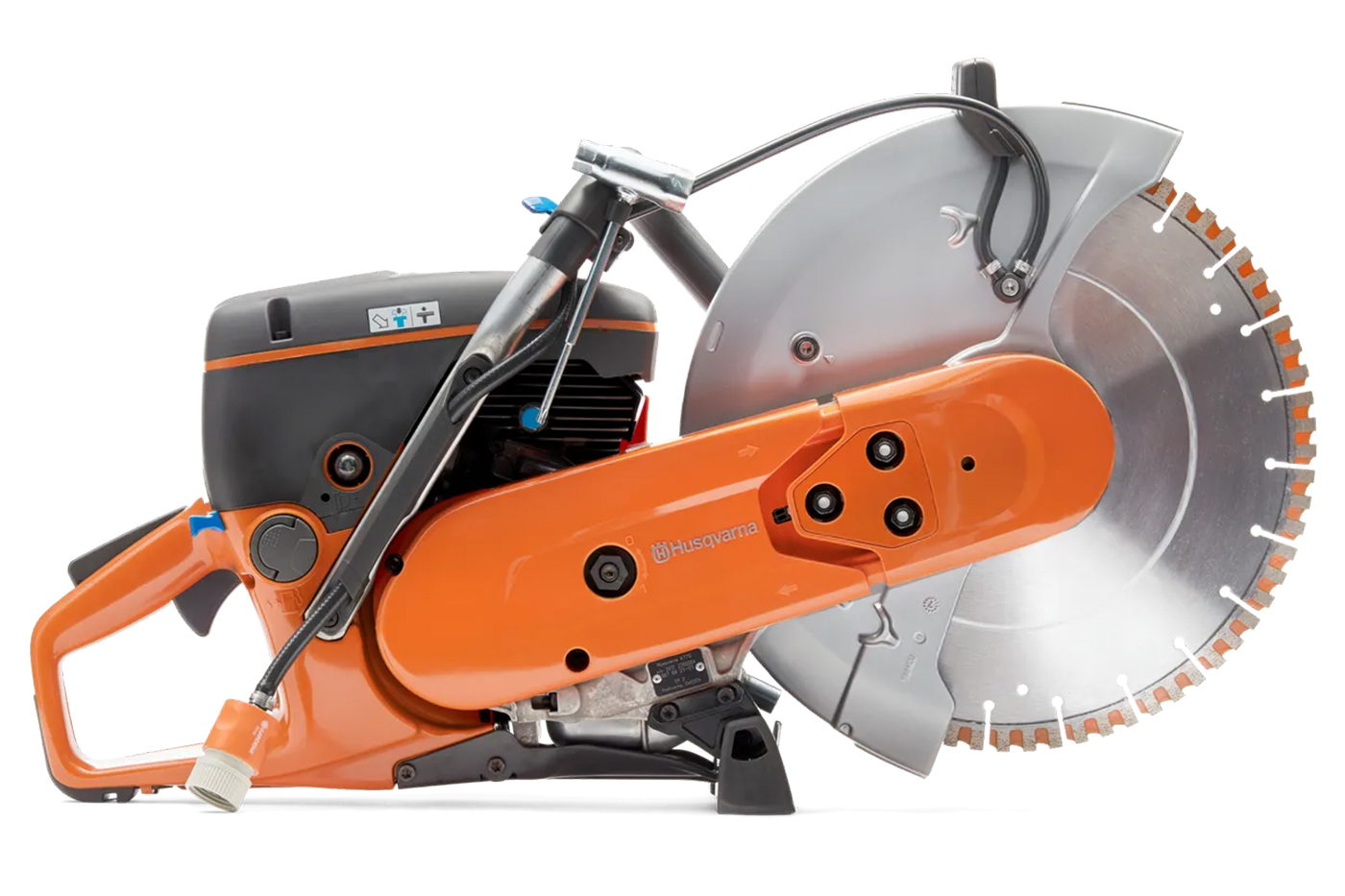

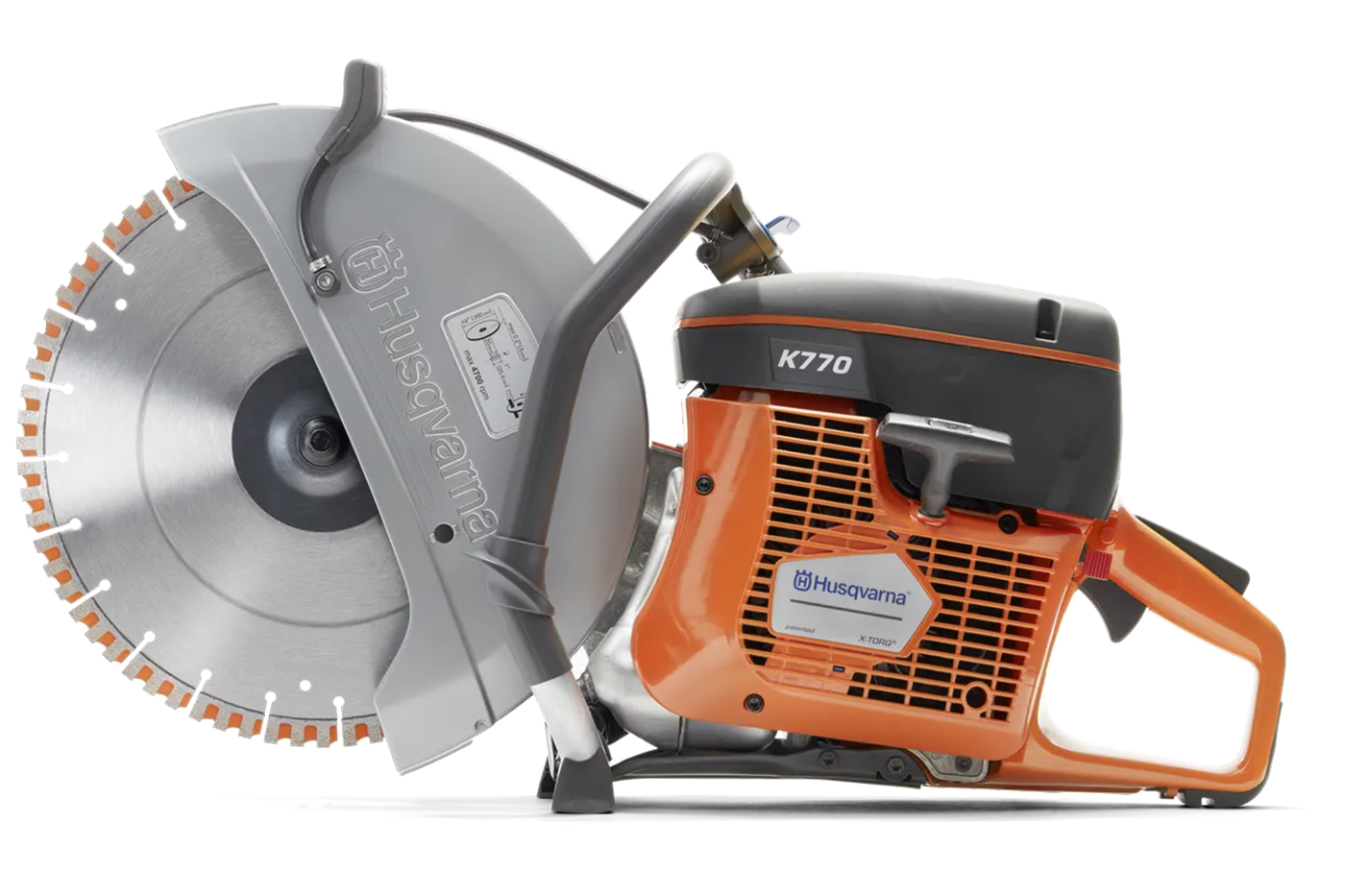

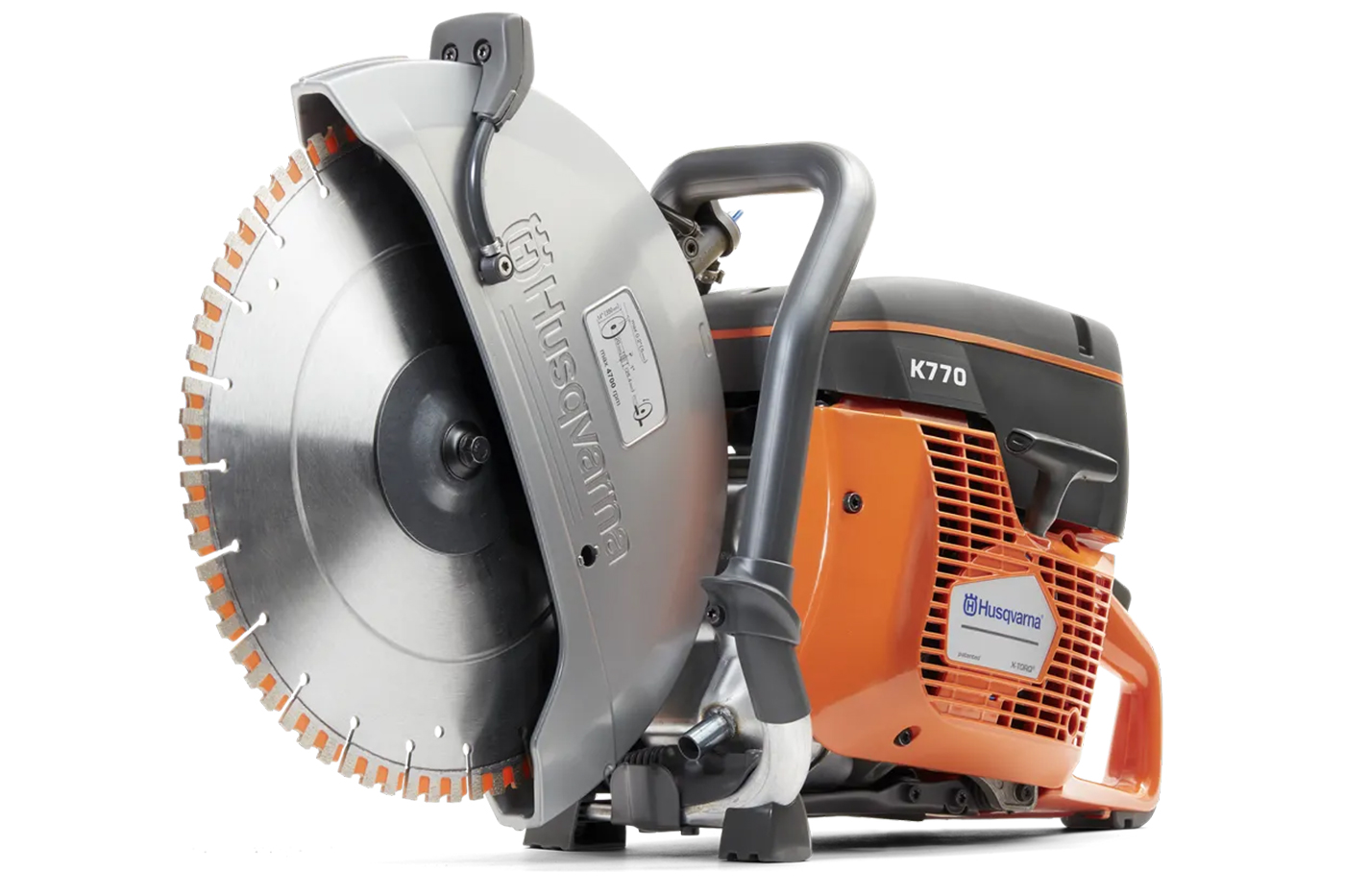

Husqvarna K 770
K 770

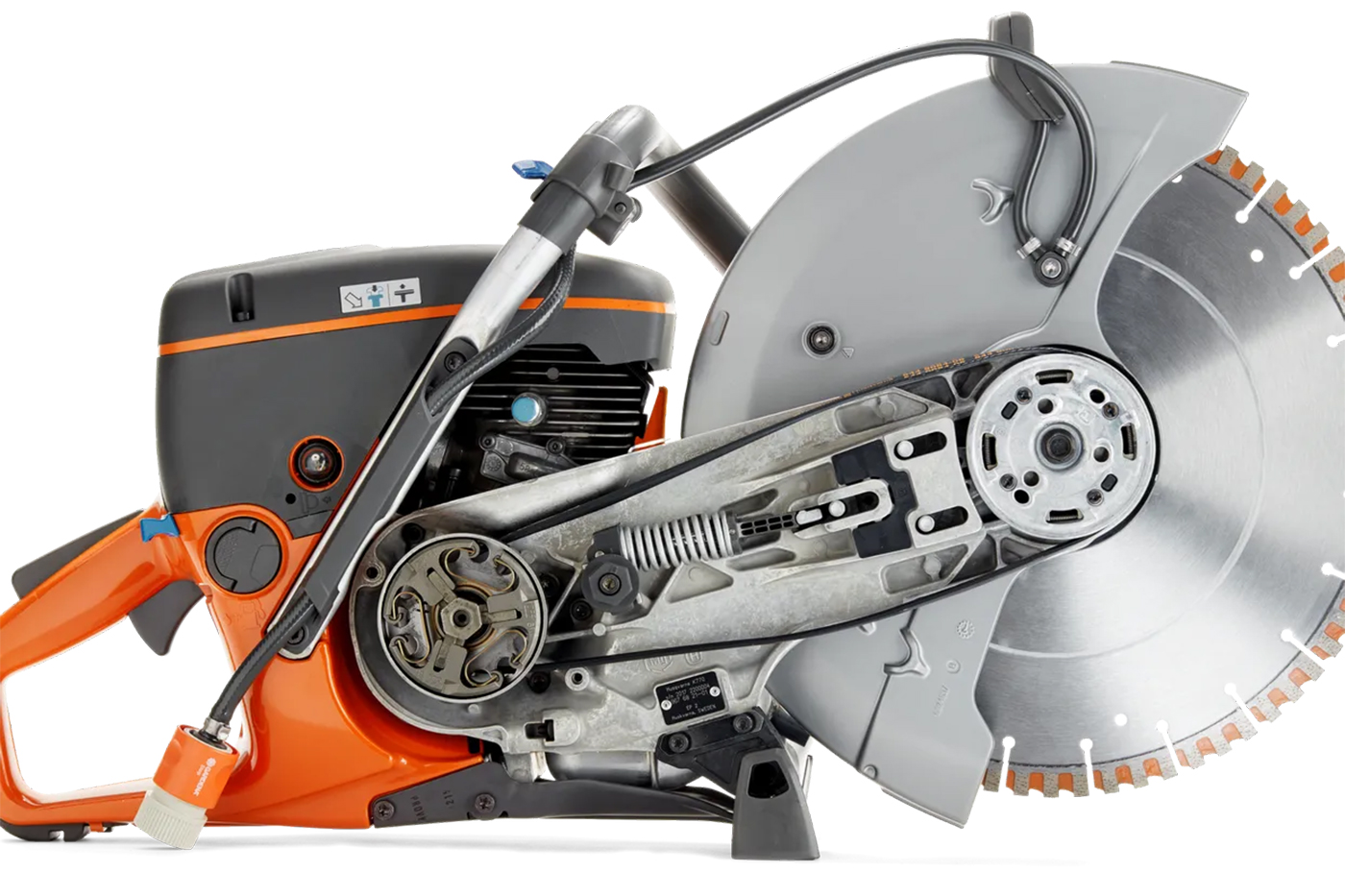

Easy and optimal belt tensioning
The semi-automatic SmartTension minimises the risk of under- and over tensioning
Light and powerful
A light, compact and powerful machine with superior power-to-weight ratio.
Exceptionally low vibrations
Vibrations below 2.5 m/s2 in the cutter handles for more comfort and longer operation periods.
Long service intervals
A strong Poly-V belt combined with our maintenance-free starter DuraStarter™ and efficient filter-system Active Air Filtration™ ensures long service intervals.
Heavy-duty cutting arm
The new-designed cast magnesium crankcase has a three-bolt joint to attach the cutting head, enabling higher torsional rigidity than the previous two-bolt solution.
Easy to start
The unique design of the carburettor, cylinder and digital ignition system, together with air purge and decompression valve ensure an easy start.
Less slurry and low water consumption
Excellent dust control with our wet cutting kit. A progressive water valve for exact adjustment of the water volume to efficiently bind the dust and reduce slurry.
Cuts close to walls or ground

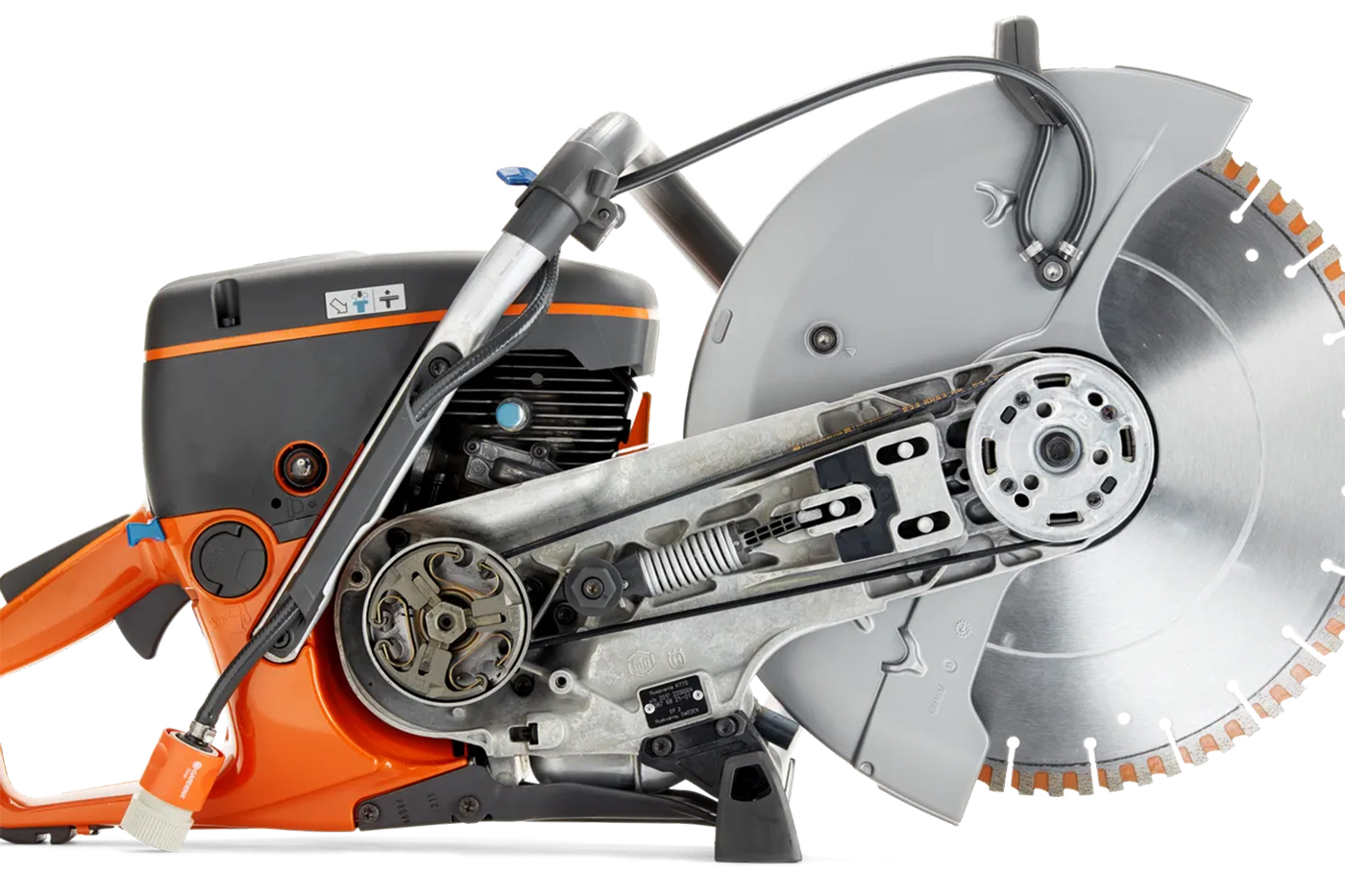

Possible thanks to the reversible cutting arm

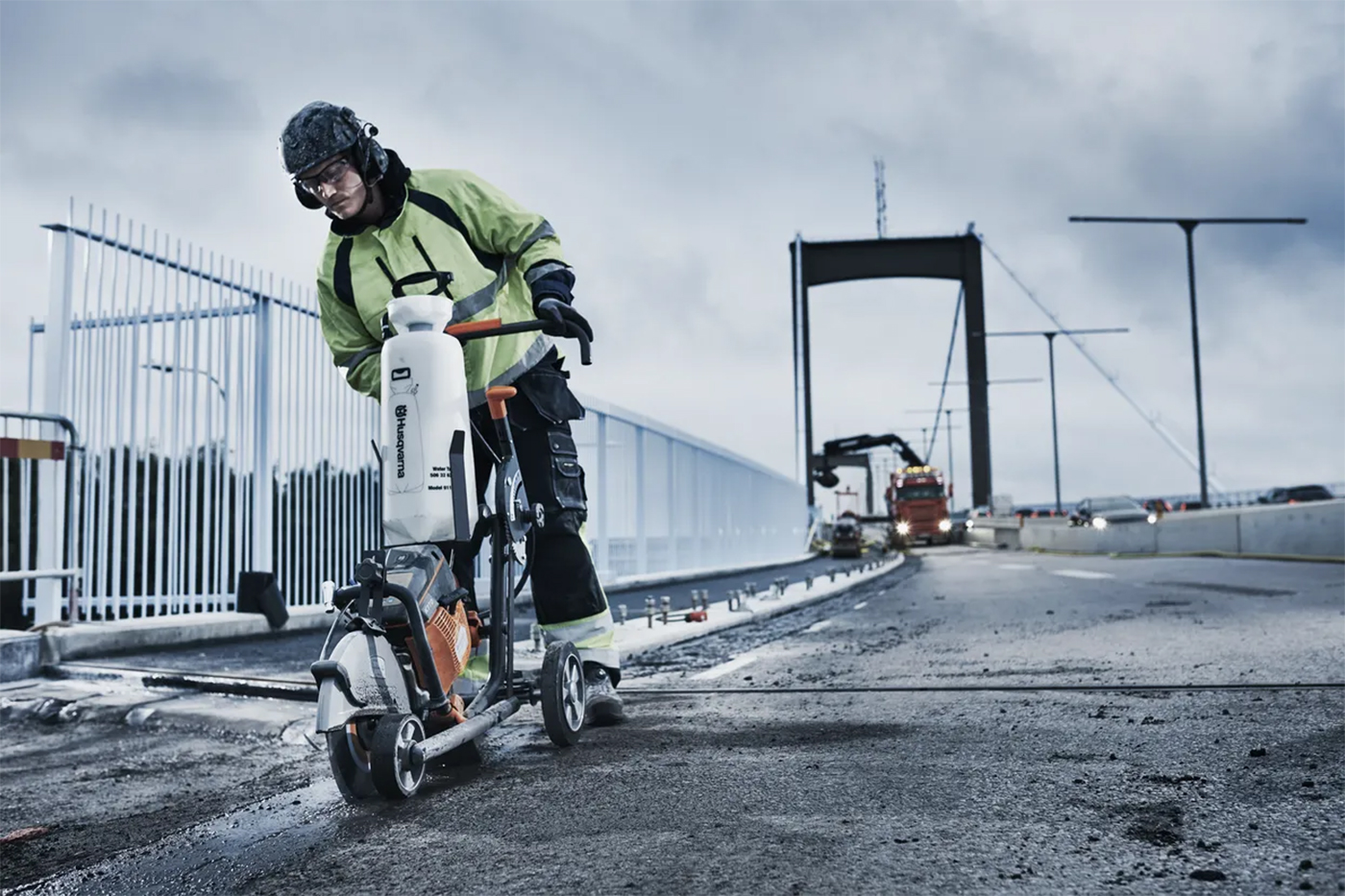

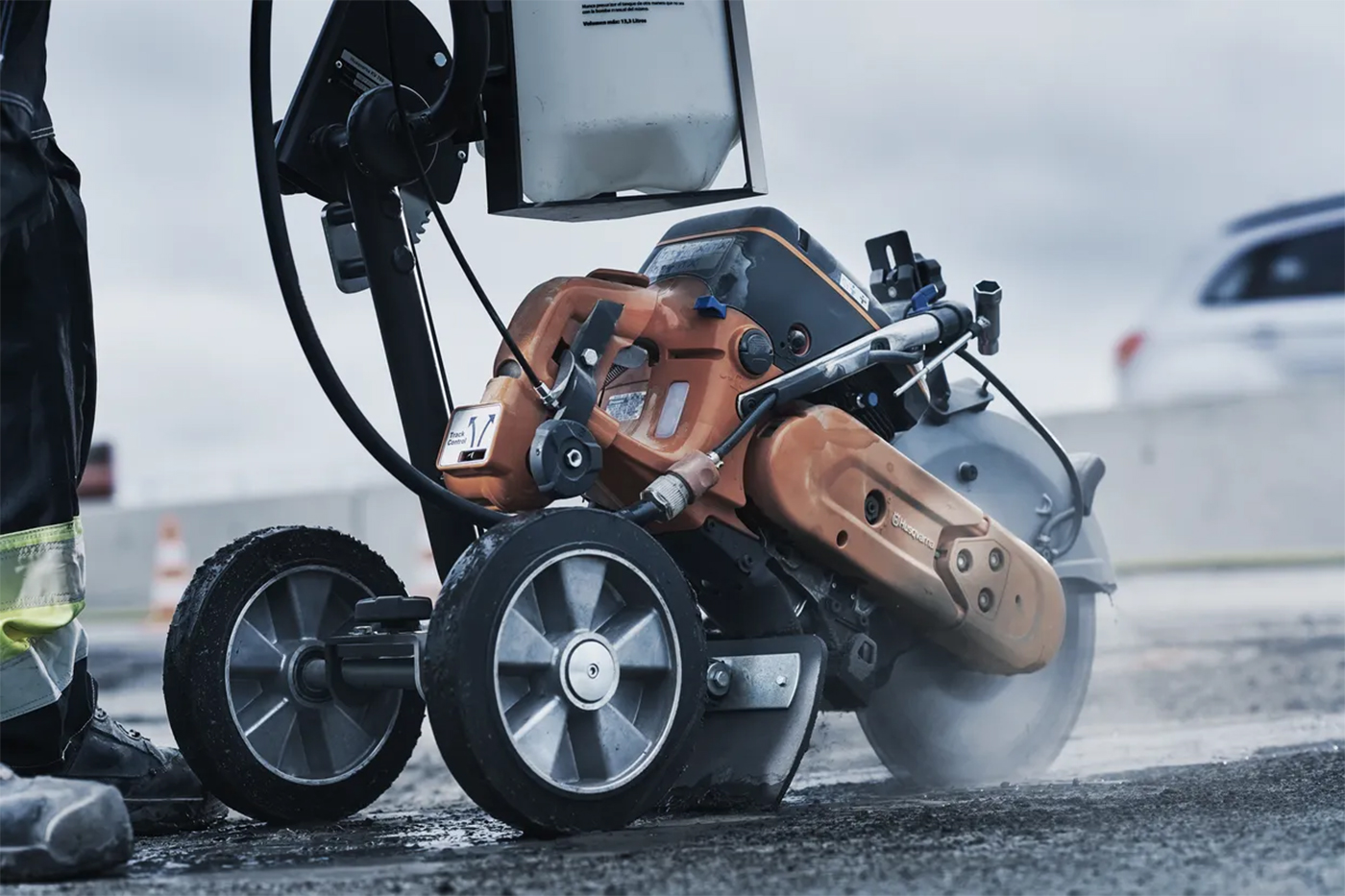

Asphalt
Asphalt cutting in roadworks
Blocks, curbstones and pavers

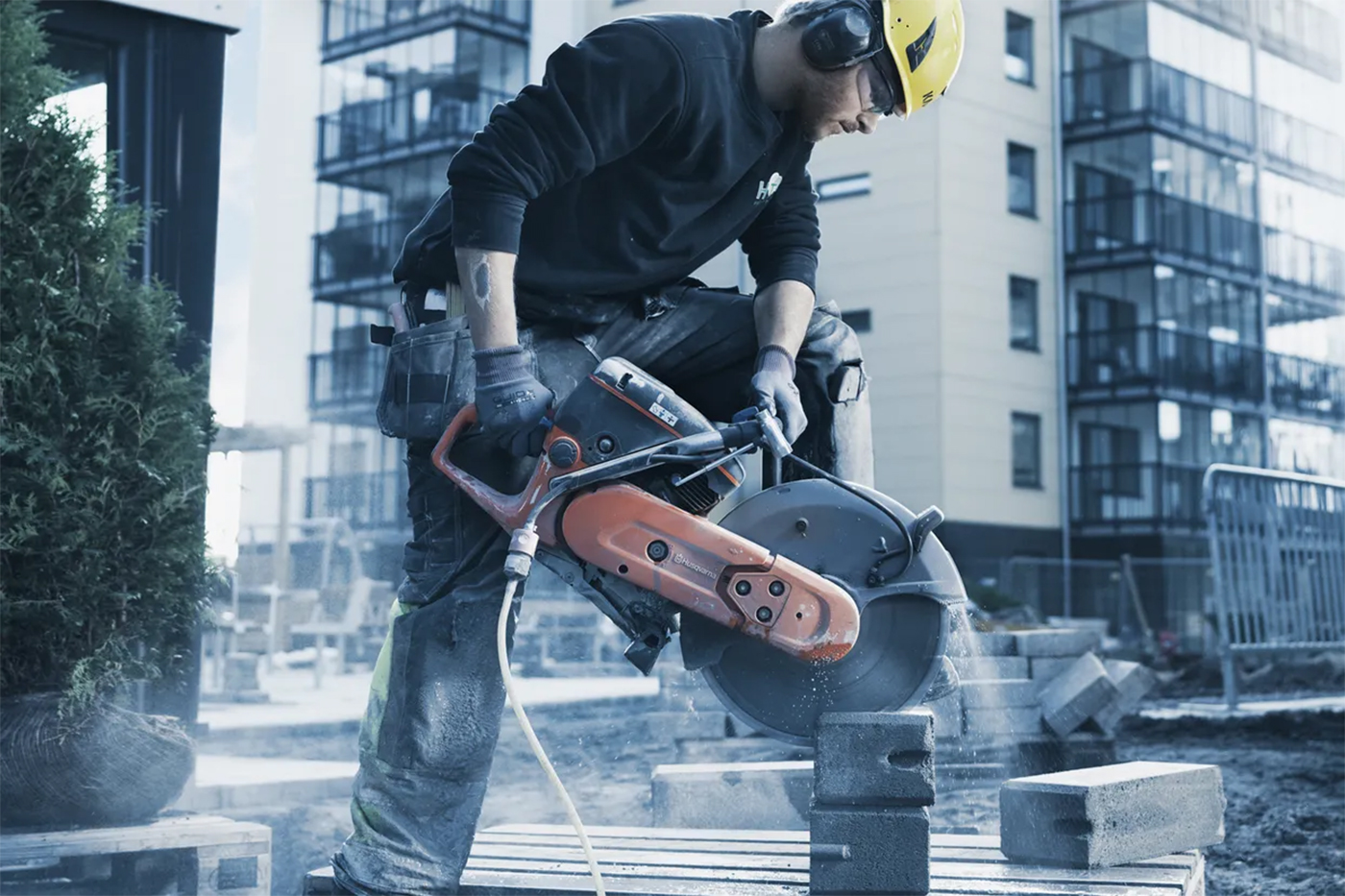

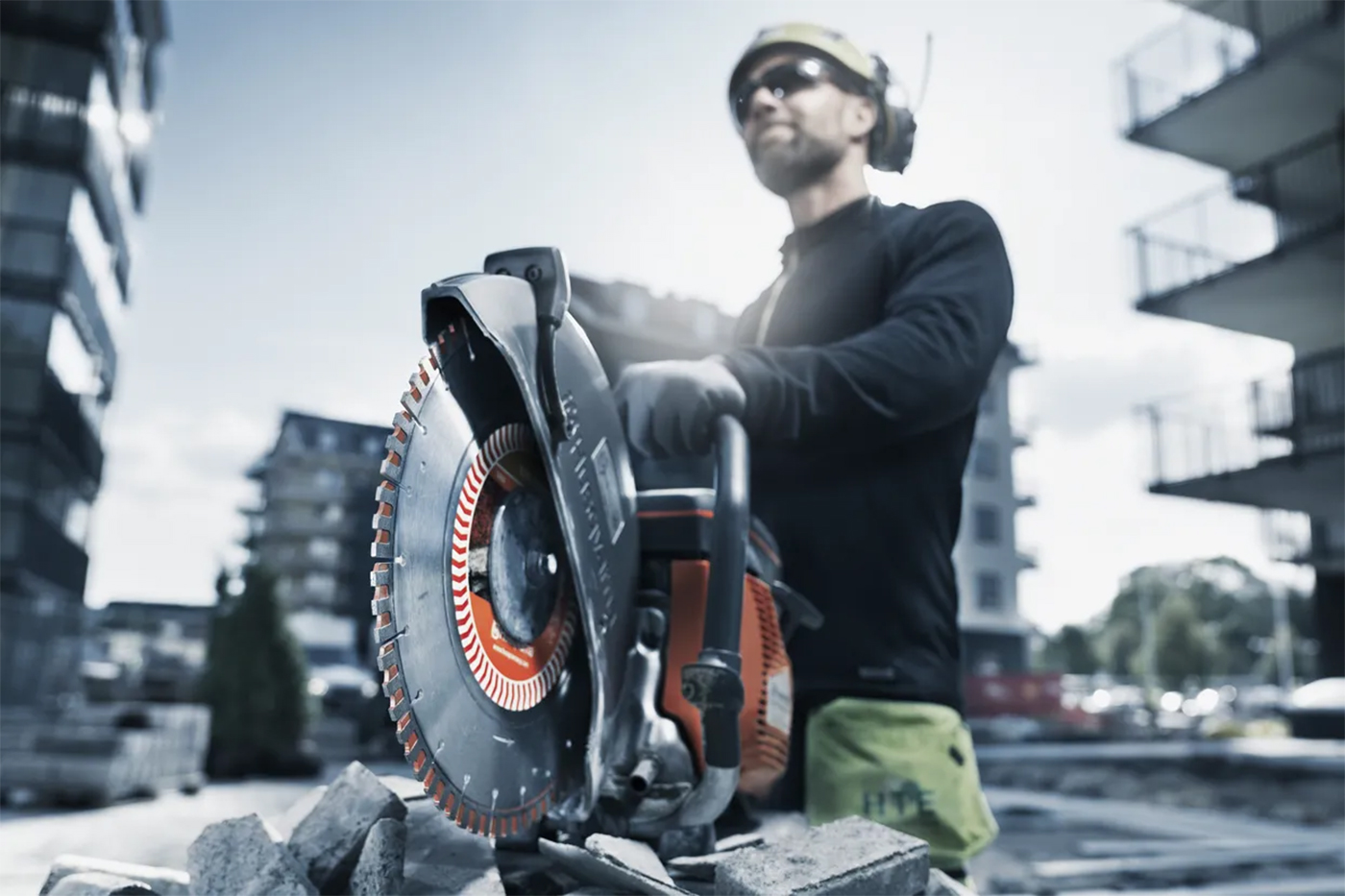

Cutting building blocks, curbstones and garden pavers.
Burying of cables
Burying of all kinds of cables.
Cast concrete
Cutting cast concrete.
Floors and walls
Regular cutting in floors and walls.
Rescue cutting
Cutting in rescue operations.
Blade shaft and bearings
Provide extended blade life and reduces maintenance.
Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
| Product Variants |
POWER CUTTER K 770 14" (1" / 20mm) ,POWER CUTTER K 770 12" (1" / 20mm) |
|---|
| Engine |
POWER CUTTER K 770 14" | 1" / 20mm
Art no: 967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
Art no: 967 80 85‑01
|
|---|---|---|
Output power |
3,7 kW | 3,7 kW |
Cylinder displacement |
73,5 cm³ | 73,5 cm³ |
Electrode gap |
0,5 mm | 0,5 mm |
Cylinders |
1 | 1 |
Number of strokes |
2-stroke engine | 2-stroke engine |
| Cutting deck | ||
Cutting depth, max |
125 mm | 100 mm |
| Emission | ||
Exhaust emissions (CO₂ EU V) |
711 g/kWh | 711 g/kWh |
| Cutting System | ||
Blade diameter, max |
350 mm | 300 mm |
Arbor diameter |
25.4/20 mm | 25.4/20 mm |
Blade thickness, max |
5 mm | 5 mm |
Peripheral speed, max |
90 m/s | 80 m/s |
| Dimensions | ||
Product size length |
605 mm | 605 mm |
Product size width |
225 mm | 225 mm |
Product size height |
415 mm | 391 mm |
Weight (complete product w/o side packed articles) |
10,1 kg | 10 kg |
| Sound and noise | ||
Sound power level, guaranteed (LWA) |
115 dB(A) | 115 dB(A) |
Sound pressure level at operators ear |
101 dB(A) | 101 dB(A) |
| Vibration | ||
Vibrations left/front handle |
2 m/s² | 2,1 m/s² |
Vibrations right/rear handle |
2,3 m/s² | 2,3 m/s² |
