Aftermarket Guidance Solutions

Do you already know our latest Precision Farming family member Raven?

In the retrofit sector, the brand-independent and flexible Raven portfolio is intended on one hand to complement the existing product portfolio, and on the other hand to serve customers in a new field which is active implement control.

Manual Guidance with Lightbar:

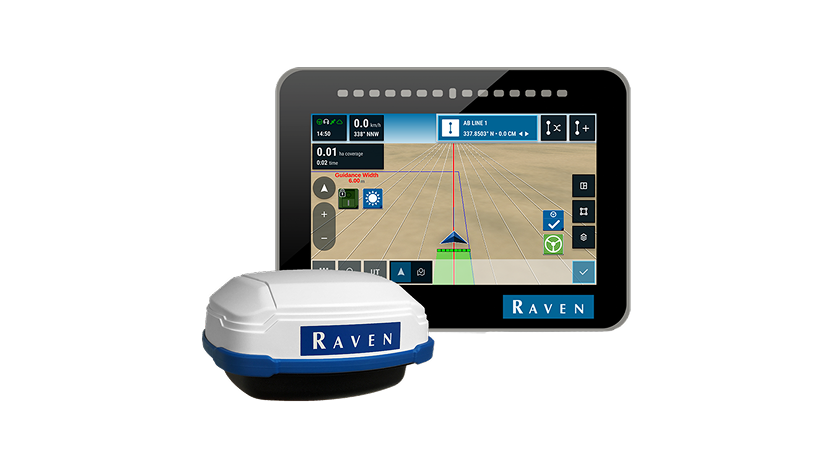

CR7®+ Displays with 500S Antenna

Raven’s lightest and most cost-efficient 7-inch display, CR7+, is intuitive and easy to use. A simple widget concept, easily accessible settings, ISO Universal Terminal (UT) and Task Controller capabilities make this mighty unit an affordable plug-and-play system.

500S is an affordable, entry-level GNSS receiver. It tracks GPS, GLONASS and BeiDou for improved strength in any environment. Fixed or magnetic mounting options make it ideal for portable and dynamic applications.

CR7+ Key Features

  • Simplified, customisable widget layoutì
  • Ability to access settings page from inside a job
  • Map-based navigation
  • Auto field boundaries keep you organised automatically
  • Interactive field/job list and map view
  • Slingshot® ready for file transfer and remote support
  • ISO Universal Terminal and Task Controller functionality available
  • Straight A-B, A plus heading, pivot, contour, and last pass guidance
  • Multiple language support and customisable units

500S Key Features

  • Quick convergence time
  • Sub-meter pass-to-pass accuracy
  • SBAS (20 cm pass-to-pass)
  • Ability to shut down a device in a static position for any extended period
  • Seamless integration
  • Compact, low-profile design
  • Fixed or magnetic mounting options
  • Durable enclosure
  •

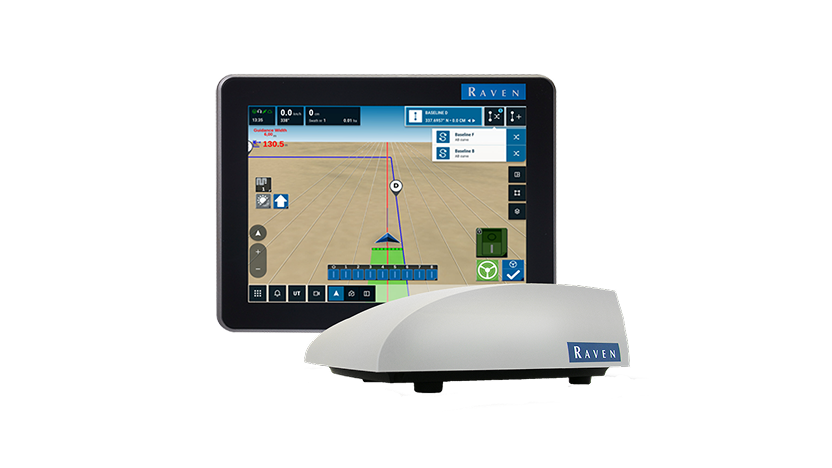

Advanced Steering CR12®+ Display with RS1 Receiver

The CR12+ display specialises in accurate, complex path planning — especially on rows that aren’t straight or are on uneven terrain. Its premium in-cab experience is best suited for high-value crops on a small amount of land.

RS1 is a fully scalable steering solution that combines GNSS, a modem and autosteer into a complete connectivity solution. Industry leading accuracy at both high and low speeds combined with quick line acquisition improves efficiency and allows you to cover more hectares per day.

CR12+ Key Features

  • 12.1-inch high-quality display
  • Simple, customisable user interface with touchscreen controls
  • Offers repeatable accuracy
  • Moves easily from machine to machine
  • Records and stores data each day, displaying what was planted and where. Data is stored locally and on the cloud
  • Controls up to 105 virtual sections
  • Map based navigation
  • Boundary and guidance line options
  • Recommended for up to 5-product control
  • Slingshot® file transfer and remote support
  • Easy backup/system recovery
  • Straight A-B, A+, Pivot, Contour, and Last Pass guidance
  • ISOBUS Universal Terminal and Task Controller capabilities
  •

RS1 Key Features

  • Compatible with all Raven displays
  • Integrated steering controller, GPS receiver with antenna and cellular connectivity modem
  • GPS, GLONASS, BeiDou, Galileo
  • Optional dual-sim integrated cellular modem
  • Easy-to-use automatic calibration
  • Continuous reversing
  • Compatible with ISOBUS 11783 Virtual Terminal
  • Multi-lingual support
  •
