Accuracy levels

Whether your operation requires sub-inch accuracy reliable year-to-year repeatability, or simply fast, dependable guidance
and data gathering, Case IH Precision Technology lets you customize your precision farming technology precisely to your needs and objectives.

Match the Exact Level of
Precision That You Need

From managing inputs during field preparation through harvest, Case IH offers a number of corrections with four types
of delivery so you can choose what is best for your operation.

Ultimate Precision
with AFS RTK+

RTK+ (Real Time Kinematic) is the top-end technology that ensures a fast, dependable signal and maximum accuracy in all conditions,
regardless of field location. For the ultimate precision an additional wireless correction signal from a mobile communications network,
with the modem fixed to the tractor and a range of up to 30 km, provides the technology you need.

Cost-savings

Keeping work as parallel as possible means lower fuel costs, reduced inputs of seeds, fertilisers and plant protection products, and a reduction in time needed to get the job done.

Efficiency

The accuracy and fast connections everywhere and at any time reduce application overlaps and skips allowing more accurate placement of inputs, including fertilizer and herbicides.

Simplicity

You have a single contact for your hardware and correction signal. Enjoy also the flexibility in a single subscription for unlimited access, compatible with all hardware.

Repeatability

RTK+ ensures repeatability even in the narrowest rows for a better control field traffic, keep tire tracks on the same path and reduce compaction.

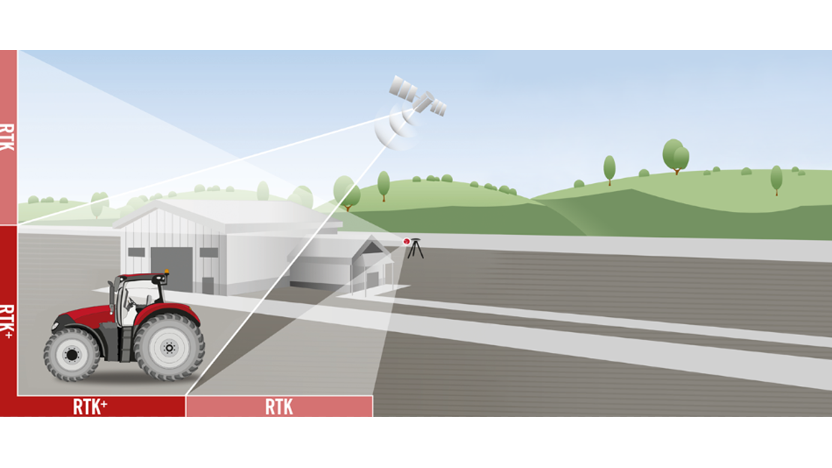

No signal interruption

The Case IH AFS RTK+ solutions allow you also to maintain centimeter-level accuracy indefinitely when faced with interruptions due to challenging terrain or poor cellular service.

The signal losses can be bridged for up to 20 minutes as soon as the machine starts up. Just keep going without interruption – and maintain ultimate precision.

High Accuracy

Pass to pass: accuracy achieved over 15 minutes window between passes

Repeatable: accuracy achieved after 1 week, month or year

RTK+

Accuracy

  • Pass to pass: 1,5 cm
  • Repeatable: 1,5 cm
  • Convergence: < 1 minute

Complementary features

  • Mobile App
  • Dealer support
  • Internet access on your display

Constellation of GNSS / Satellites

  • GPS
  • GLONASS
  • GALILEO
  • BEIDOU

Receiver compatibility

All GNSS receivers

Medium Accuracy

AFS3

Accuracy

  • Pass to pass: 3 cm
  • Repeatable: 5 cm
  • Convergence: < 18 minute

Constellation of GNSS / Satellites

  • GPS
  • GLONASS
  • GALILEO
  • BEIDOU

Receiver compatibility

Only AFS Vector Pro

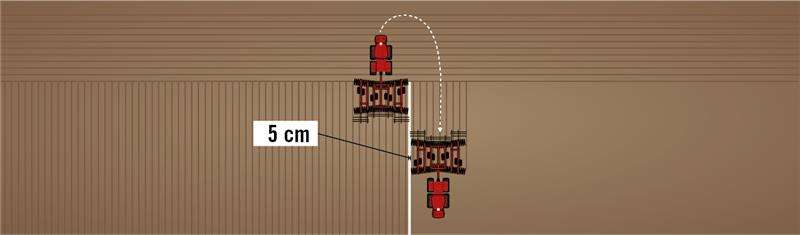

AFS2

Accuracy

  • Pass to pass: 5 cm
  • Repeatable: 5 cm
  • Convergence: < 30 minute

Constellation of GNSS / Satellites

  • GPS
  • GLONASS

Receiver compatibility

Only AFS Vector Pro

Base Accuracy

AFS1

Accuracy

  • Pass to pass: 15 cm
  • Repeatable: 50 cm
  • Convergence: < 5 minute

Constellation of GNSS / Satellites

  • GPS
  • GLONASS

Receiver compatibility

Only AFS Vector Pro

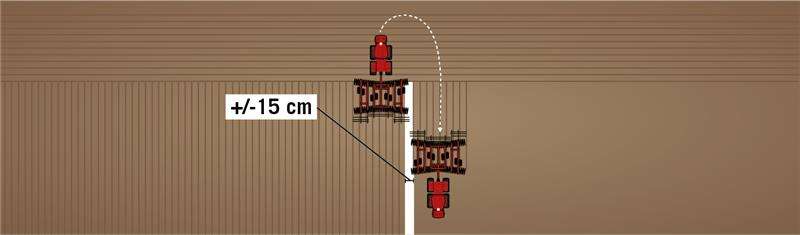

RangePoint RTX

Accuracy

  • Pass to pass: 15 cm
  • Repeatable: 15 cm
  • Convergence: < 1 minute

Constellation of GNSS / Satellites

  • GPS
  • GLONASS
  • GALILEO
  • BEIDOU

Receiver compatibility

NAV-900

EGNOS

Accuracy

  • Pass to pass: 20 cm
  • Repeatable: 1 m
  • Convergence: < 1 minute

Constellation of GNSS / Satellites

  • GPS

Receiver compatibility

All GNSS receivers
